Chambal Cable Stayed Bridge
CIVIL & JV
- Location: Kota, Rajastan
- Client: Hyundai Engineeering & Construction
- Awarded: 2012
- Status: Completed
Scope of Work
- Supply and Installation of Stay Cable Work
- Supply and Installation of PT Work
- Construction and Operation of Form Traveller Work

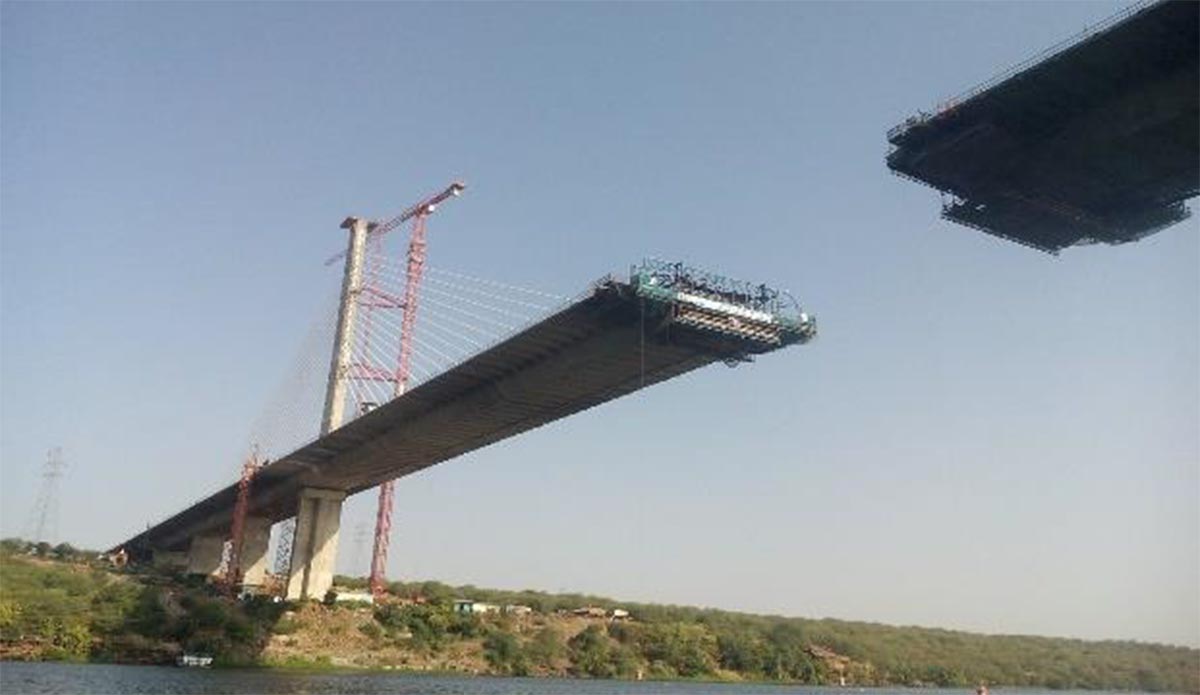

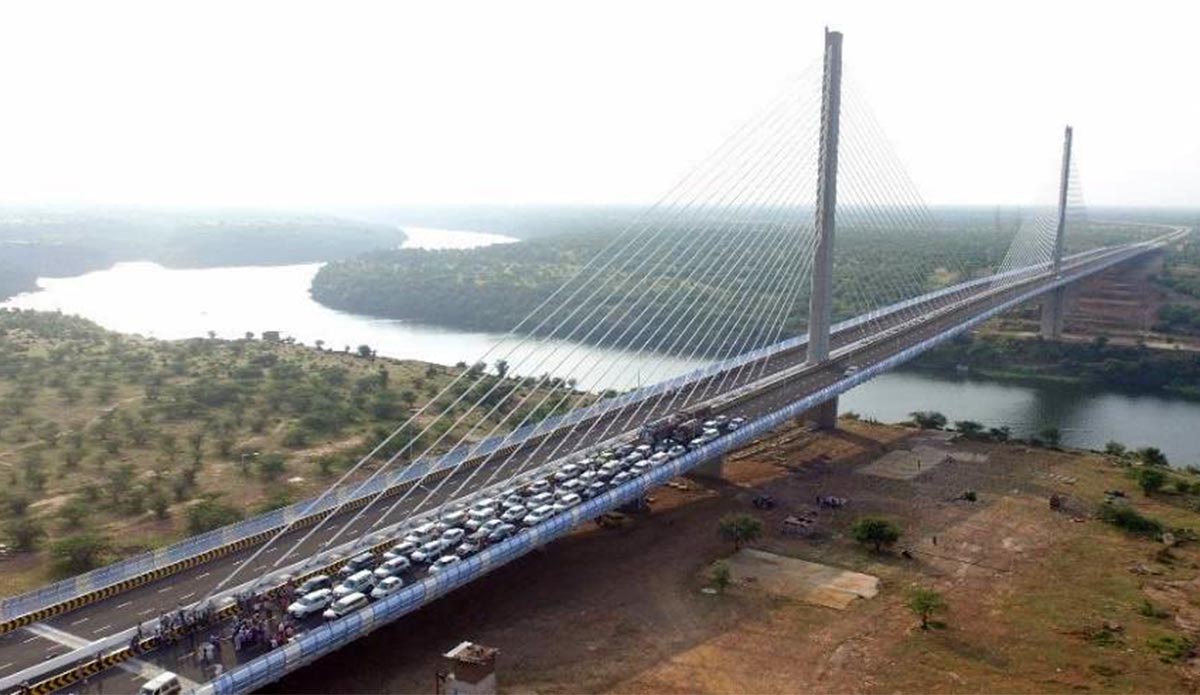

The stays are in a single plane with a semi harp arrangement, and are anchored every 7 m in the deck. The 80 m high pylons. The stay cables are composed of individually sheathed strands having a triple protection, galvanization, wax filling and individual polyethylene sheat. The external cable duct has helicoids in order to eliminate rain and wind induced vibrations.
The strands have seven wires of class 1860 mpa and stay cables unities vary from 58 to 91 strands.
